5G Synchronization: Mastering Transport Layer Dynamics
The pace of innovation in telecommunications is accelerating, with the rollout of 5G technology underscoring an ever-present need: synchronization precision across networks. This is the first in a three-part series of articles that will delve into the criticality of 5G synchronization across three layers: transport, radio and resilience. Throughout the series, we will unravel why synchronization isn’t just a technical requirement but the backbone of seamless, ultra-reliable 5G communications. In this first article, we’ll be shining a spotlight on the transport layer.
The role of 5G synchronization
The 5G landscape is as dynamic as it is complex. Synchronization has emerged not just as a feature but as a pillar for performance, reliability and the seamless execution of services. With 5G’s promise of ultra-fast speeds, low latency and massive connectivity, synchronization ensures that data packets across sprawling networks arrive not only quickly but in perfect harmony, enabling everything from high-speed internet to autonomous vehicle communication and IoT integrations.
Synchronization in 5G, especially for wireless applications, hinges on stringent standards and technologies such as GNSS, PTP, SyncE defined by standard bodies such as 3gpp, ITU-T or IEEE. These foundational elements ensure that time-sensitive applications in a world increasingly reliant on digital and cloud services can operate without a hitch, marking a significant leap from previous generations of network technology.
Deploying 5G: Synchronization use cases and challenges
Focusing on the transport layer for 5G synchronization, one notable use case involves deploying the Full Timing Support (FTS) protocol, G.8275.1, crucial for applications requiring stringent timing accuracy like cellular TDD services, virtual reality or autonomous driving. This standard ensures comprehensive timing support across the network but it’s not without challenges. High-density urban environments, for instance, pose significant obstacles due to signal blockages and reflections, demanding advanced planning and deployment strategies to maintain synchronization integrity.
Another critical scenario is the deployment of Partial Timing Support (PTS) or Assisted Partial Timing Support (APTS), detailed in standard G.8275.2, suitable for environments where parts of the network may not be fully timing-aware. This scenario often arises in mixed-use networks involving legacy and modern infrastructure, introducing complexities in maintaining consistent timing which is vital for preventing signal interference and ensuring smooth service delivery. Overcoming these challenges requires innovative synchronization solutions tailored to the unique demands of the 5G ecosystem.
Key synchronization technologies and standards
Let’s now delve into the synchronization technologies pivotal for 5G transport: GNSS, Precision Time Protocol (PTP) and Synchronous Ethernet (SyncE). GNSS provides universal timing but its signal vulnerability in dense urban areas necessitates backup systems like PTP and SyncE. PTP, specified in standards such as G.8275.1 and G.8275.2, offers a flexible synchronization method capable of overcoming GNSS limitations by distributing time over packet networks. SyncE, complementing PTP, ensures frequency synchronization through the physical layer, crucial for maintaining the continuity and quality of service in 5G networks. Together, these technologies form a robust synchronization framework essential for the high-speed, low-latency demands of 5G transport.
Testing to ensure precision in 5G synchronization
Ensuring synchronization accuracy in 5G networks is not just about implementing the right technologies; it’s also about rigorously testing these systems to uphold the stringent standards required for optimal performance.

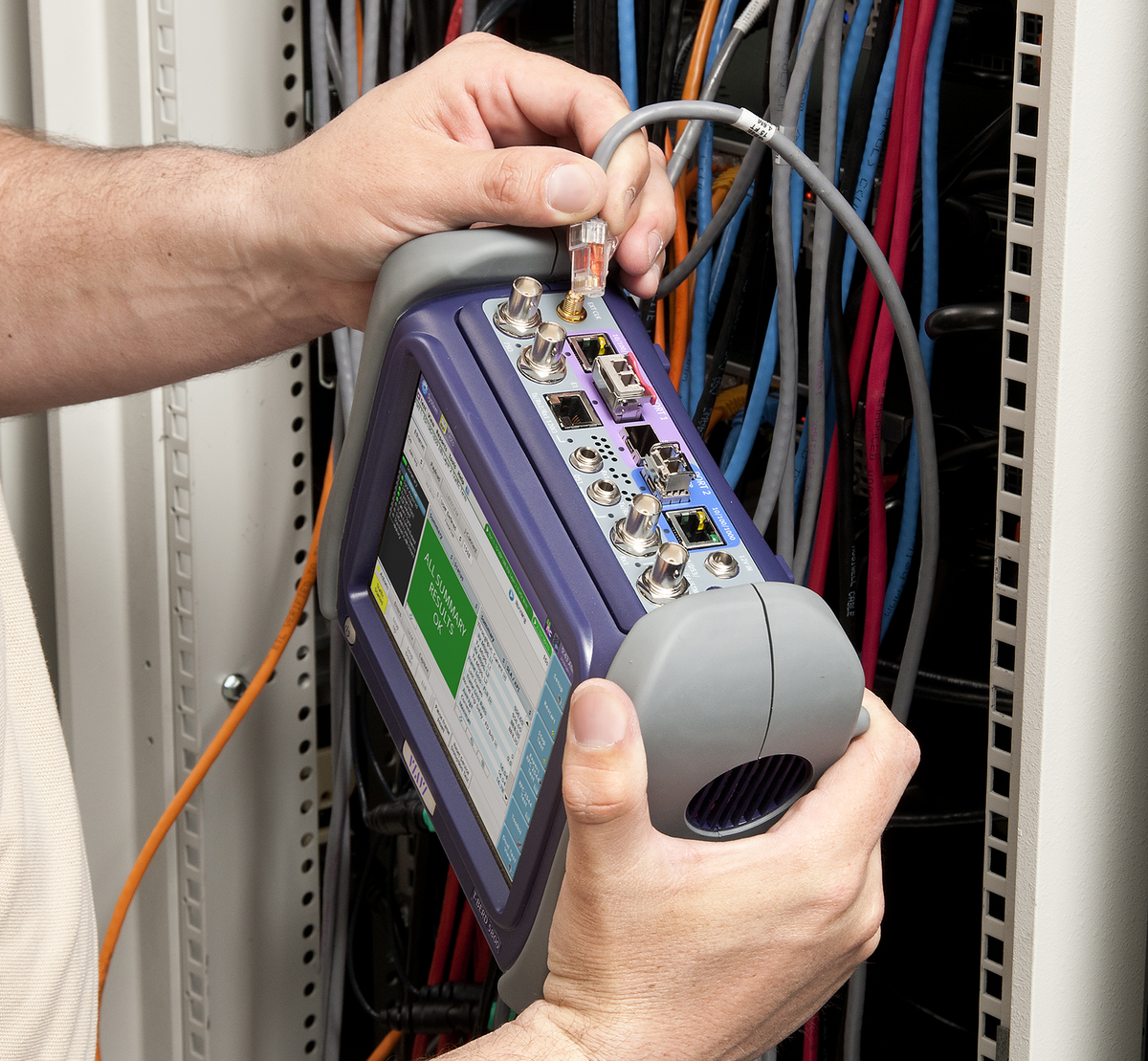

The VIAVI T-BERD/MTS-5800 and OneAdvisor 800 enhanced with the Timing Expansion Module (TEM2) help customers achieve precision in 5G synchronization. The TEM2 Timing Module significantly enhances the capabilities of the T-BERD/MTS-5800 and OneAdvisor 800 by providing a field-optimized reference for timing and synchronization measurements. It includes a multi-band GNSS antenna and a Rubidium oscillator for high precision. This allows for nanosecond-accurate measurements essential in 5G synchronization, ensuring reliability and performance even without GNSS signal, utilizing holdover mode. The module supports multiple GNSS constellations and offers a range of outputs and interfaces for comprehensive synchronization testing.
These tools are instrumental in conducting PTP/SyncE/GNSS tests, aligning with ITU G.8265.1, G.8275.1, and G.8275.2 profiles for near-lab-grade accuracy in field conditions, empowering field engineers to tackle the complexities of 5G synchronization while ensuring network resilience and reliability.
